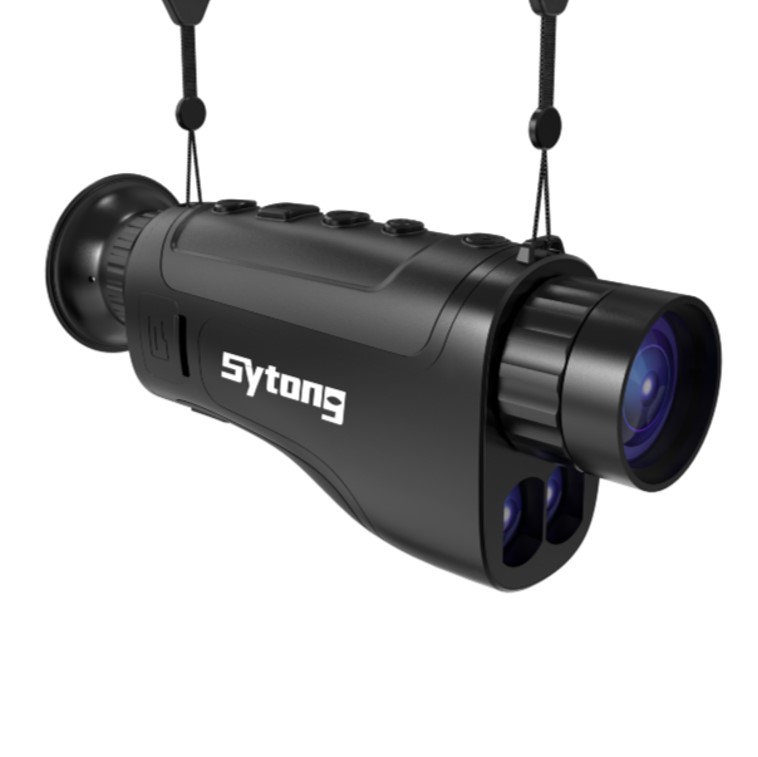

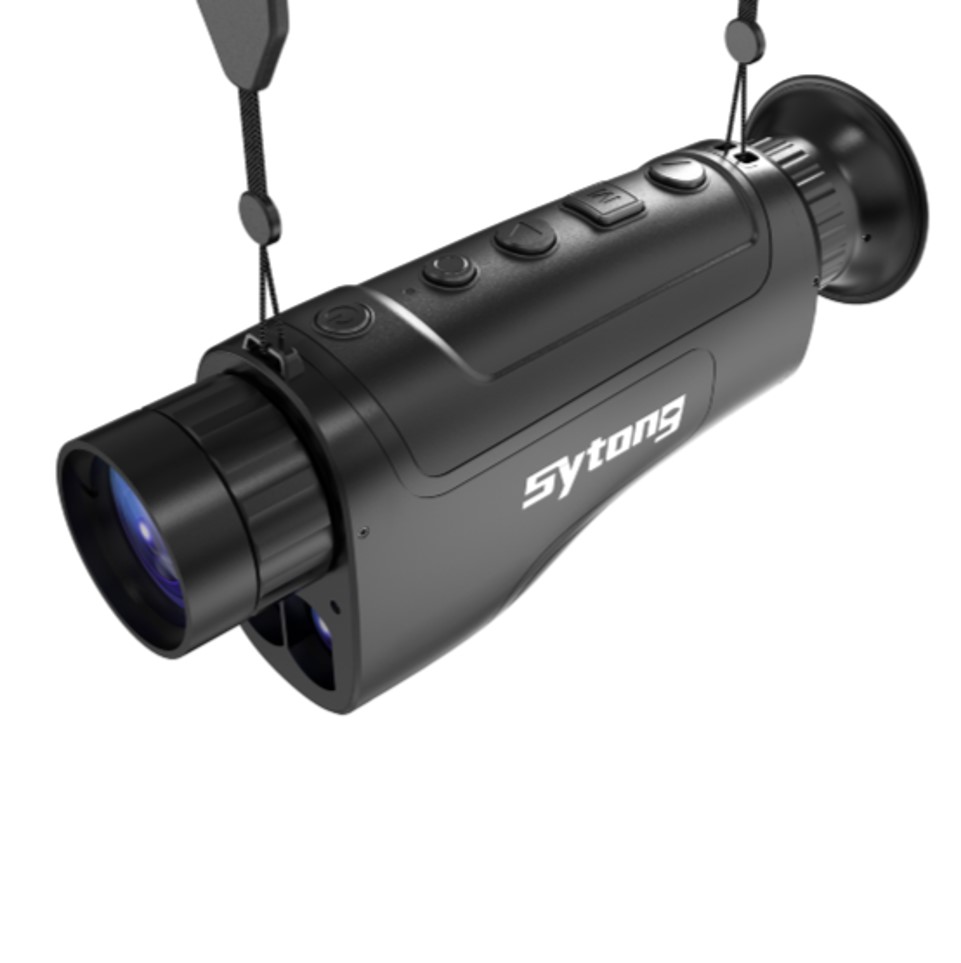

The compact thermal imager Sytong GS06-25LRF (1.2x) with a rangefinder and a 640th matrix is designed for everyday round-the-clock observations in the city and in nature in various weather conditions. The device “sees” through fog and smoke, provides the user with a clear and informative picture in the snow and in the rain, performs linear measurements within 1000 m and is able to detect a person at a distance of 1250 m. tablet (WiFi) or TV (TV OUT).
Key parameters
Sensor 640×480 (12 µm, NETD<30mK). 6 color schemes.
Magnification 1.2…9.6x, detection range – 1.25 km.
Laser rangefinder, laser pointer, tracking “hot” spots.
Calibration with curtain, 5 sec countdown timer.
Quick start (<3 s), sleep mode, auto power off.
Non-removable battery, USB connection, 9 hours of operation.
Wi-Fi, video output, photo / video recording on a removable TF card.
Compact design with rain and dust protection (IP65), works in cold and hot weather (-20°C/+50°C).
Handheld or tripod (1⁄4“) observations. Lanyard included.
A small optical magnification of 1.2x is combined with a good field of view and a detection range of up to 1.25 km – it is convenient to conduct search and survey observations and study fast moving targets. Thanks to the 640×480 pixel matrix, at night and in complete darkness, the Sytong GS06-25LRF thermal imager will show a more detailed and rich image, and high temperature sensitivity (NETD) will allow you to distinguish between temperature contrasts at the level of 0.003 deg. Celsius and provide effective imaging even in bad weather conditions.
The laser rangefinder works in any light and measures up to 1000 m with an accuracy of up to a meter. The unit is fully integrated into the body to make the device more compact and convenient, more like classic rangefinders; the 905 nm laser beam is invisible to the naked eye (and does not unmask the position of the observer), and the direction of the beam during measurements coincides with the center of the AMOLED screen.
The powerful 8x digital zoom raises the base magnification to 9.6x, improving detail and recognition. The Hot Trace mode allows you to find and track the hottest targets or zones within a single object. And the laser designator (LCD) in the dark works like a laser pointer and is clearly visible at a great distance.
The Xitong GS06-25 LRF rangefinder thermal imager starts up in 3 seconds, works up to 9 hours from a single charge of the built-in B-Pack battery (6000 mAh) and automatically turns off if no buttons are pressed for 3 or 5 minutes. “Sleep” mode allows you to save battery and quickly return to work.
For lovers of photo / video shooting, the device has a recorder and a microphone (enabled in the settings). An infrared image with a resolution of 1024×768 is written to a removable memory card (the card is purchased separately). The thermal imager can also be used as a remote autonomous surveillance camera with real-time image output to an external screen – just connect the device to a smartphone / tablet (Wi-Fi) or TV (TV OUT).
